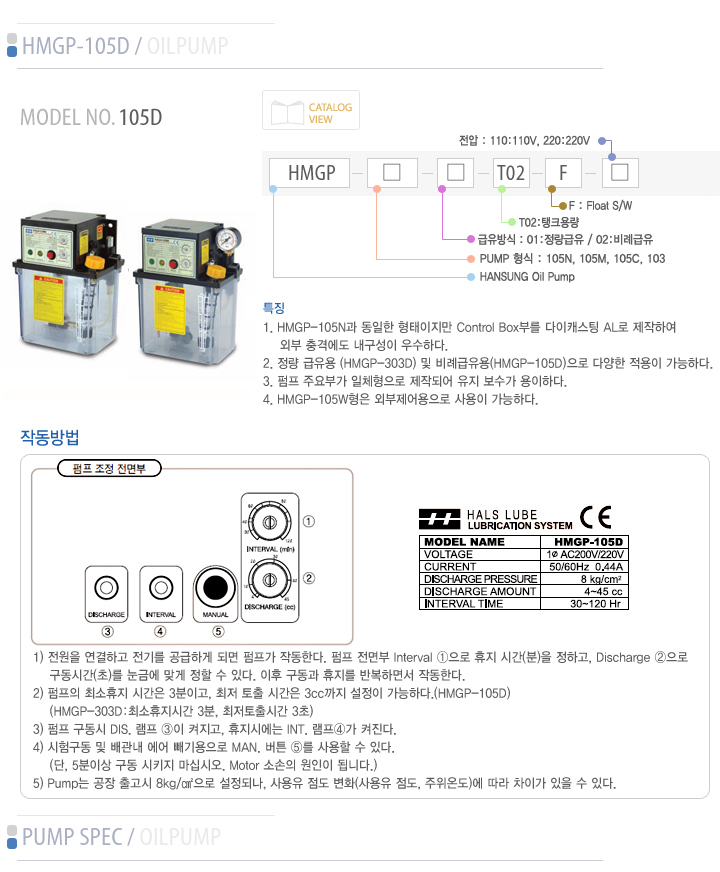

  HMGP-105D


PUMP SPEC.
  HMGP-105D HMGP-105W HMGP-303D
PUMP TYPE GEAR PUMP
DISCHARGE PRESSURE 8kg/cm² 017kg/cm²
INTERVAL TIME 3~30/
30~120min		 OUTSIDE
CONTROL		 3~35kg/cm²
USING OIL 32~800(cSt) 32~1300(cSt)
FILTER 80 Mesh
TANK CAPACITY 2Liter
WEIGHT 2.5kg
FLOAT S/W 접점형식 A 접점(NO)
유면하한시 ON
DISCHARGE AMOUNT 3~30/
4~80 cc		 OUTSIDE
CONTROL		 150cc/min
MOTOR SPEC.
OUTPUT 36W 57W
PHASE 1Ø 1Ø
VOLTAGE 110V 200V/220V 110V 200V/
220V
CURRENT 0.85A 0.44A 1.54A 0.77A
FREQUENCY 50/60Hz 50/60Hz
