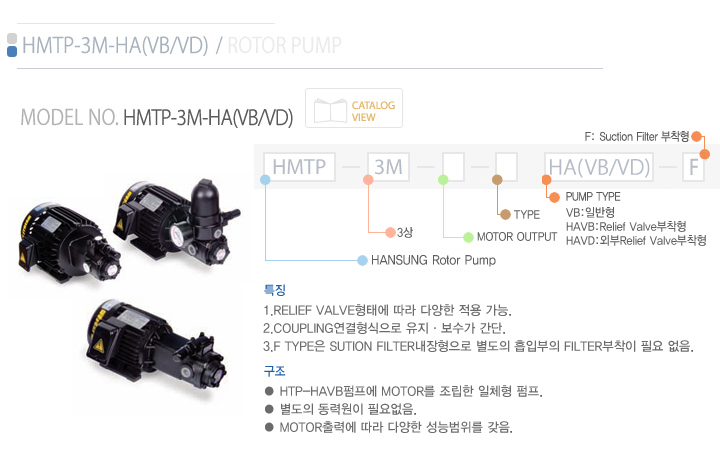

  HMTP-3M-HA(VB/VD)


TYPE 50Hz 4P(1500rpm) 60Hz 4P(1800rpm)
Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)		 Discharge Amount(ℓ/min) Motor Max. Pressure
(kg/cm²)
400W 750W 1500W 400W 750W 1500W
HMTP-203HA(VB/VD) 4.5 30.0 30.0 30.0 5.4 26.0 30.0 30.0
HMTP-204HA(VB/VD) 6.3 21.5 30.0 30.0 7.5 16.0 30.0 30.0
HMTP-206HA(VB/VD) 9.0 10.5 25.0 25.0 10.8 7.0 23.5 25.0
HMTP-208HA(VB/VD) 12.6 7.0 23.0 25.0 15.1 4.0 17.5 25.0
HMTP-210HA(VB/VD) 15.3 4.5 15.5 25.0 18.3 2.5 11.5 25.0
HMTP-212HA(VB/VD) 18.0 3.5 13.5 20.0 21.6 - 8.5 20.0
HMTP-216HA(VB/VD) 24.3 2.0 8.5 20.0 29.1 - 5.5 19.5
HMTP-220HA(VB/VD) 29.7 - 5.5 15.5 35.6 - 3.5 14.0



Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 R.P.M Phase Poles
400W 50 200 2.4 1420 3 4
380 1.3 1420
60 200 2.2 1700
220 2.2 1720
380 1.2 1720
750W 50 200 3.5 1430 3 4
380 1.9 1440
60 200 3.4 1710
220 3.4 1730
380 1.8 1730
1500W 50 200 6.9 1430 3 4
380 3.4 1430
60 200 6.6 1720
220 6.6 1730
380 3.2 1730

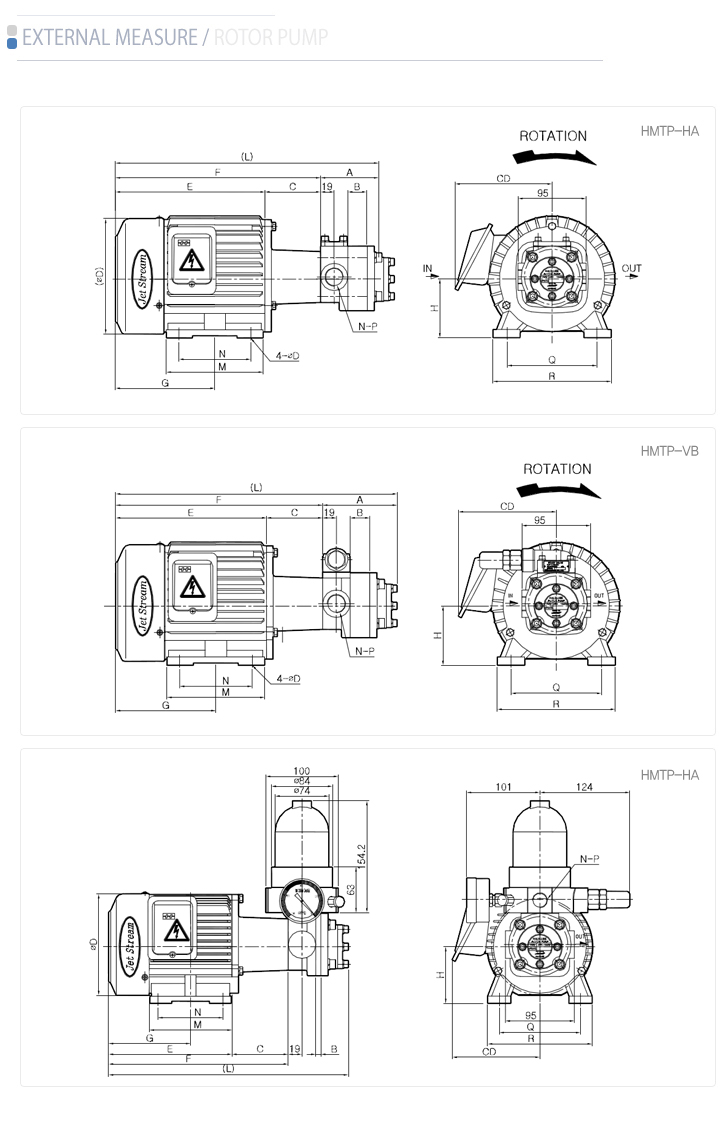

Output C D E F G L d M N Q R CD H
Motor 400W 75.5 146 170 245.5 113 F+A 7 114 90 112 144 125 71
750W 77.5 169 209 286 139 F+A 10 135 100 123 136 135 80
1500W 85.5 194 234 319.5 153 F+A 10 156 125 140 172 140 90



TYPE A B N-P TYPE A B N-P
HMTP-203HA(VB/VD) 81 5 2-1/2 HMTP-210HA(VB/VD) 93 17 2-3/4
HMTP-204HA(VB/VD) 83 7 2-1/2 HMTP-212HA(VB/VD) 96 20 2-3/4
HMTP-206HA(VB/VD) 86 10 2-1/2 HMTP-216HA(VB/VD) 103 27 2-3/4
HMTP-208HA(VB/VD) 90 14 2-1/2 HMTP-220HA(VB/VD) 109 33 2-3/4
