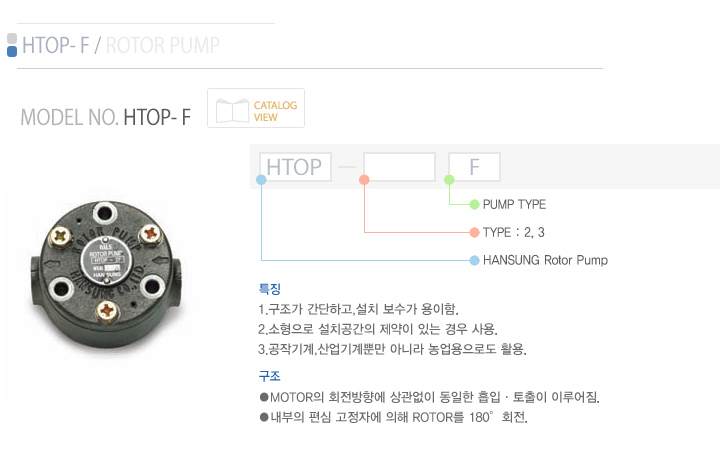

  HTOP-F TYPE


Theory
Discharge
Amount(cm³/rev)		 Discharge Amount(l/min) Max. Pressure
(kg//cm²)		 Max.
R.P.M		 Weight
(kg)
1500rpm 1800rpm
HTOP-2F 1.80 2.70 3.24 5.0 2000 1.1
HTOP-3F 2.50 3.75 4.50 5.0 2000 1.2

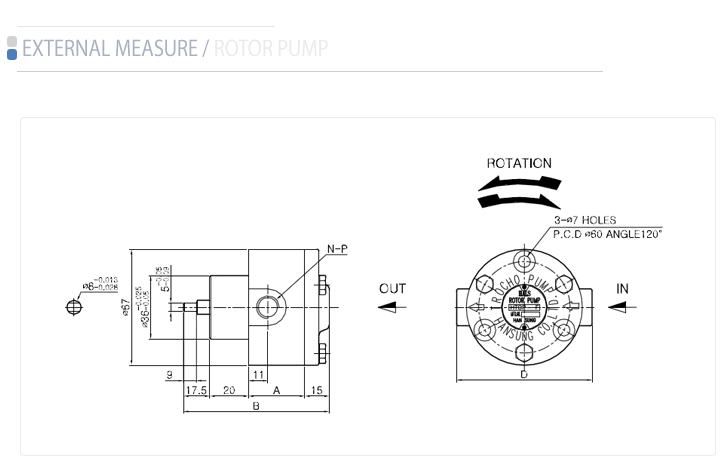

TYPE A B N-P D
HTOP-2F 32 84 2-PT 1/4 77
HTOP-2F 35 87 2-PT 1/4 77
