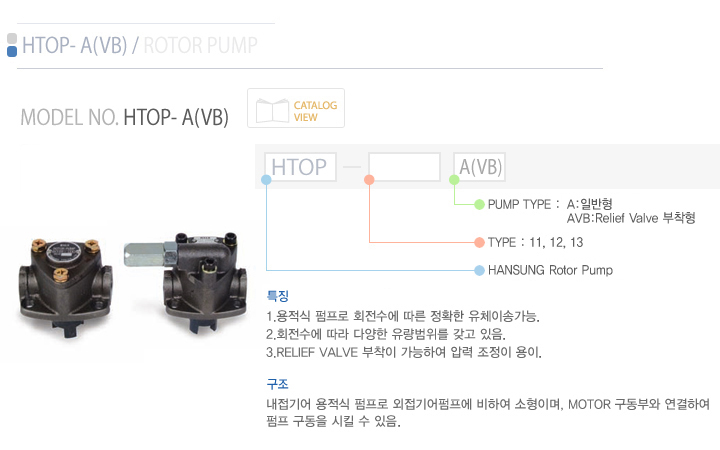

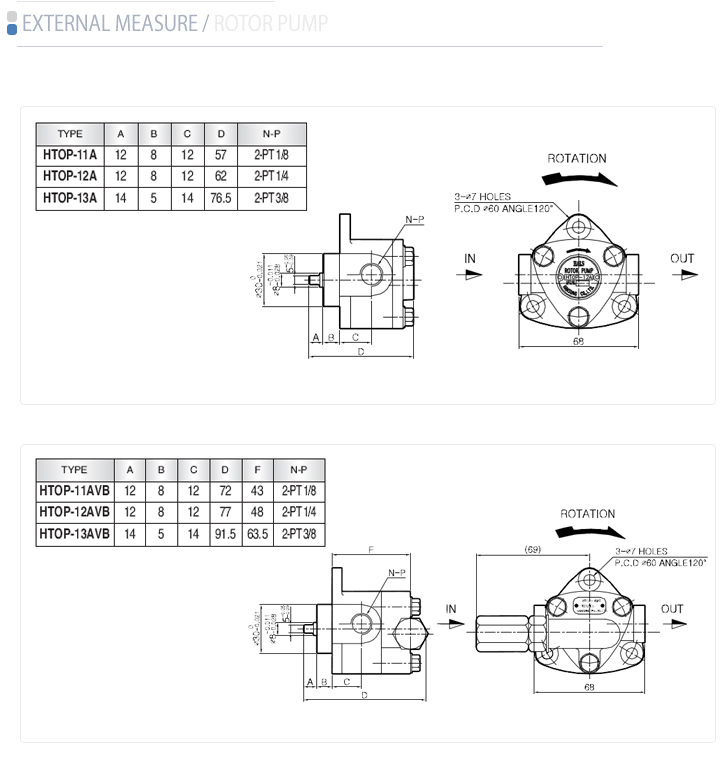

  HTOP-A(VB)TYPE


Theory
Discharge
Amount(cm³/rev)		 Discharge Amount(l /min) Max. Pressure
(kg/cm²)		 Max.
R.P.M		 Weight
(kg)
1500rpm 1800rpm
HTOP-11A 1.5 2.2 2.7 5.0 2000 0.5
HTOP-12A 2.5 3.7 4.5 5.0 1800 0.6
HTOP-13A 4.5 6.7 8.1 5.0 1800 0.8
HTOP-11AVB 1.5 2.2 2.7 5.0 2000 0.55
HTOP-12AVB 2.5 3.7 4.5 5.0 1800 0.65
HTOP-13AVB 4.5 6.7 8.1 5.0 1800 1.0
