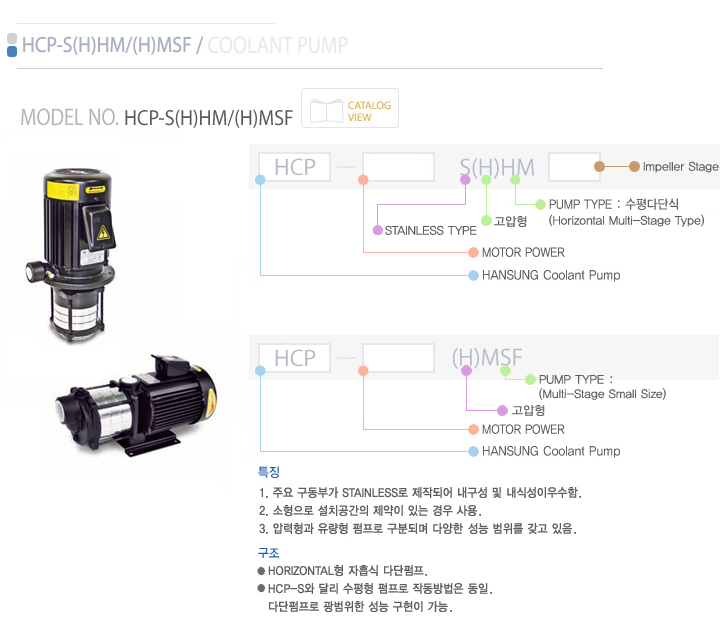

  HCP-S(H)HM/(H)MSF


MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size Weight
(kg)
HCP-750SHM20 750 50 200
380		 3.5
2.0		 3 2 15 35 1 17
60 200/220
380		 4.0
2.5		 20
HCP-900SHM30 900 50 200
380		 5.2
3.1		 3 2 20 35 1 18
60 200/220
380		 6.0/5.8
3.4		 30
HCP-900SHM40 900 50 200
380		 5.2
3.1		 3 2 30 35 1 19
60 200/220
380		 6.0/5.8
3.4		 45
HCP-550SHHM20 550 50 200
380		 2.5
1.4		 3 2 15 20 1 13
60 200/220
380		 2.7
1.6		 25
HCP-750SHHM30 750 50 200
380		 3.5
2.0		 3 2 25 20 1 14
60 200/220
380		 4.0
2.5		 35
HCP-900SHHM40 900 50 200
380		 5.2
3.1		 3 2 30 20 1 15
60 200/220
380		 6.0/5.8
3.4		 50
HCP-750MSF 750 50 200
380		 3.5
2.0		 3 2 15 35 3/4 23
60 200/220
380		 4.0
2.5		 20
HCP-900MSF 900 50 200
380		 5.2
3.1		 3 2 30 30 3/4 23
60 200/220
380		 6.0/5.8
3.4		 45
HCP-750HMSF 750 50 200
380		 3.5
2.0		 3 2 25 20 3/4 20
60 200/220
380		 4.0
2.5		 35
HCP-900HMSF 900 50 200
380		 5.2
3.1		 3 2 30 20 3/4 20
60 200/220
380		 6.0/5.8
3.4		 50



A B C D L
HCP-750HM20 68.5 90.5 208 92.5 352.5
HCP-900SHM30 95.5 117.5 208 119.5 379.5
HCP-900SHM40 122.5 144.5 208 146.5 406.5
HCP-550SHHM20 59.5 81.5 208 84.5 343.5
HCP-750SHHM30 77.5 99.5 208 102.5 361.5
HCP-900HHM40 95.5 117.5 208 120.5 379.5
HCP-750MSF 184 249 20 136 433
HCP-950MSF 184 249 20 136 433
HCP-750HMSF 165 249 20 117 414
HCP-950HMSF 165 249 20 117 414
