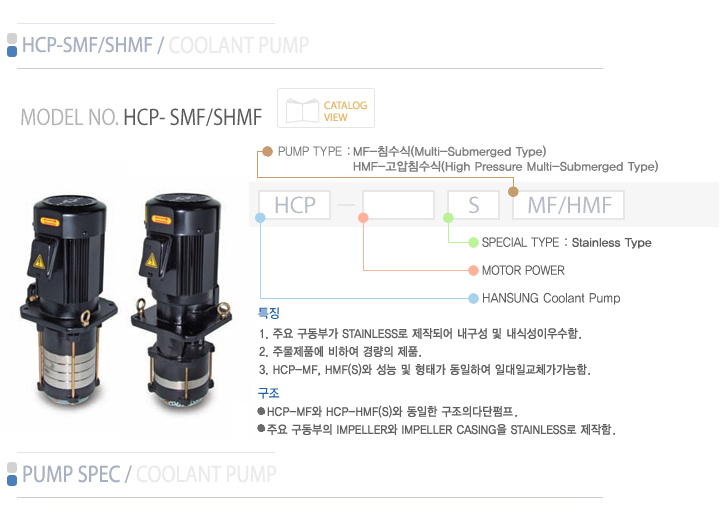

HCP-SMF/SHMF

	MOTOR						PUMP
	Output (W)	Frequency (Hz)	Voltage (V)	Current (A)	Phase	Poles	Total Head (m)	Dis. Vol ( l /min)	Pipe Size (PT)	Weight (kg)
HCP-400SMF	400	50	200 380	2.4 1.4	3	2	5	150	1¼(1½)	24
		60	200/220 380	2.5 1.5				200
HCP-900SMF(S)	900	50	200 380	5.2 3.1	3	2	6.5	200	1¼(1½)	25
		60	200/220 380	6.0/5.8 3.4			10
HCP-1500SMF	1500	50	200 380	7.5 4.1	3	2	20	100	1½	35
		60	200/220 380	8.5/8.0 4.6			30
HCP-2200SMF	2200	50	200 380	9.0 5.5	3	2	30	100	1½	38
		60	200/220 380	12.0/11.0 6.4			45
HCP-3000SMF	3000	50	200 380	13.0 7.1	3	2	40	100	1½	39
		60	200/220 380	15.0/14.0 8.0			60
HCP-3700SMF	3700	50	200 380	16.0 8.5	3	2	50	100	1½	40
		60	200/220 380	18.0/17.0 10.7			70
HCP-900SHMF(S)	900	50	200 380	5.2 3.1	3	2	30	20	3/4	25
		60	200/220 380	6.0/5.8 3.4			45
HCP-1500SHMF(S)	1500	50	200 380	7.5 4.1	3	2	50	20	3/4	27
		60	200/220 380	8.5/8.0 4.6			70
HCP-2200SHMF(S)	2200	50	200 380	9.0 5.5	3	2	70	20	3/4	30
		60	200/220 380	12.0/11.0 6.4			100
HCP-3700SHMF(S)	3700	50	200 380	16.0 8.5	3	2	90	20	3/4	37
		60	200/220 380	18.0/17.0 10.7			130

	ØD	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	PE (PT)	TL	R1	LA	N-ØB	PL1	PL2	M	ML
HCP-400SMF	169	12	40	250	298	165	176	207	67.6	20	190	1½,1¼	548	170	215	4-12	119	95	190	105
HCP-900SMF	169	12	40	250	298	165	176	207	67.6	20	190	1½,1¼	548	170	215	4-12	119	95	190	105
HCP-900SMFS	169	12	40	209	298	124	176	207	67.6	20	190	1¼	507	170	215	4-12	119	95	190	105
HCP-1500SMF	169	12	40	244	321	159	176	230	67.6	20	190	1½	565	170	215	4-12	119	95	190	105
HCP-2200SMF	169	12	40	244	348	159	176	257	67.6	20	190	1½	592	170	215	4-12	119	95	190	105
HCP-3000SMF	187	12	36	244	326	200	134	248	67.6	20	190	1½	570	170	215	4-12	125.5	109	218	115
HCP-3700SMF	187	12	36	354	338	310	134	248	67.6	20	303	1½	692	170	215	4-12	125.5	109	218	115
HCP-900SHMF	187	13	25	180	260	136	97	207	67.6	20	124	3/4	440	170	215	4-12	119	100	200	115
HCP-900SHMFS	169	13	25	144	260	100	97	207	67.6	20	89	3/4	404	170	215	4-12	119	100	200	115
HCP-1500SHMF	169	13	25	242	283	198	97	230	67.6	20	187	3/4	525	170	215	4-12	119	100	200	115
HCP-1500SHMFS	169	13	25	197	283	153	97	230	67.6	20	142	3/4	480	170	215	4-12	119	100	200	115
HCP-2200SHMF	169	13	25	290	267	246	97	214	67.6	20	238	3/4	557	170	215	4-12	125.5	100	200	115
HCP-2200SHMFS	187	13	25	248	267	204	97	214	67.6	20	190	3/4	515	170	215	4-12	125.5	100	200	115
HCP-3700SHMF	187	13	25	361	301	317	97	248	67.6	20	302	3/4	662	170	215	4-12	125.5	100	200	115
HCP-3700SHMF	187	13	25	313	301	269	97	248	67.6	20	255	3/4	614	170	215	4-12	125.5	100	200	115
