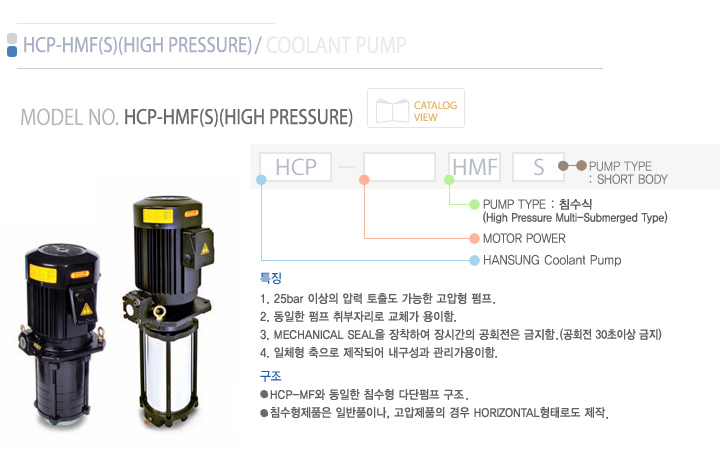

  HCP-HMF(S) (고압형)


MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-900HMF(S) 900 50 200
380		 5.2
3.1		 3 2 30 20 3/4 28
60 200/220
380		 6.0/5.8
3.4		 45
HCP-1500HMF(S) 1500 50 200
380		 7.5
4.1		 3 2 50 20 3/4 30
60 200/220
380		 8.5/8.0
4.6		 70
HCP-2200HMF(S) 2200 50 200
380		 9.0
5.5		 3 2 70 20 3/4 35
60 200/220
380		 12.0/11.0
6.4		 100
HCP-3700HMF(S) 3700 50 200
380		 16.0
8.5		 3 2 90 20 3/4 45
60 200/220
380		 18.0/17.0
10.7		 130
HCP-3700HMF130 3700 50 200
380		 16.0
8.5		 3 2 90 20 3/4 50
60 200/220
380		 18.0/17.0
10.4		 130
HCP-3700HMF200 3700 50 200
380		 16.0
8.5		 3 2 125 20 3/4 55
60 200/220
380		 18.0/17.0
10.7		 200
HCP-4000HMF280S 4000 50 200
380		 15.0
9.0		 3 2 195 20 3/4 70
60 200/220
380		 18.0
10.7		 280

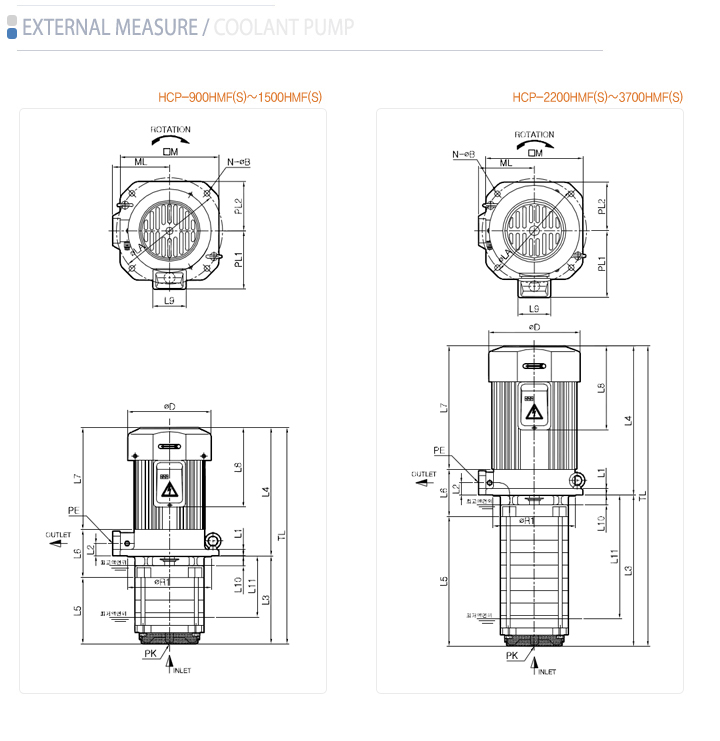

ØD L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 PE
(PT)		 TL R1 LA N-ØB PL1 PL2 M ML PK
(PF)
HCP-900HMF 169 13 25 180 260 136 97 207 166 67.6 20 124 3/4 440 170 215 4-12 119 100 200 115 1½
HCP-900HMFS 169 13 25 144 260 100 97 207 166 67.6 20 89 3/4 404 170 215 4-12 119 100 200 115 1½
HCP-1500HMF 169 13 25 242 283 198 97 230 167 67.6 20 187 3/4 525 170 215 4-12 119 100 200 115 1½
HCP-1500HMFS 169 13 25 197 283 153 97 230 167 67.6 20 142 3/4 480 170 215 4-12 119 100 200 115 1½
HCP-2200HMF 187 13 25 290 267 246 97 214 171 67.6 20 238 3/4 557 170 215 4-12 125.5 100 200 115 1½
HCP-2200HMFS 187 13 25 248 267 204 97 214 171 67.6 20 190 3/4 515 170 215 4-12 125.5 100 200 115 1½
HCP-3700HMF 187 13 25 361 307 317 97 254 171 67.6 20 302 3/4 668 170 215 4-12 125.5 100 200 115 1½
HCP-3700HMFS 187 13 25 313 307 269 97 254 171 67.6 20 255 3/4 620 170 215 4-12 125.5 100 200 115 1½

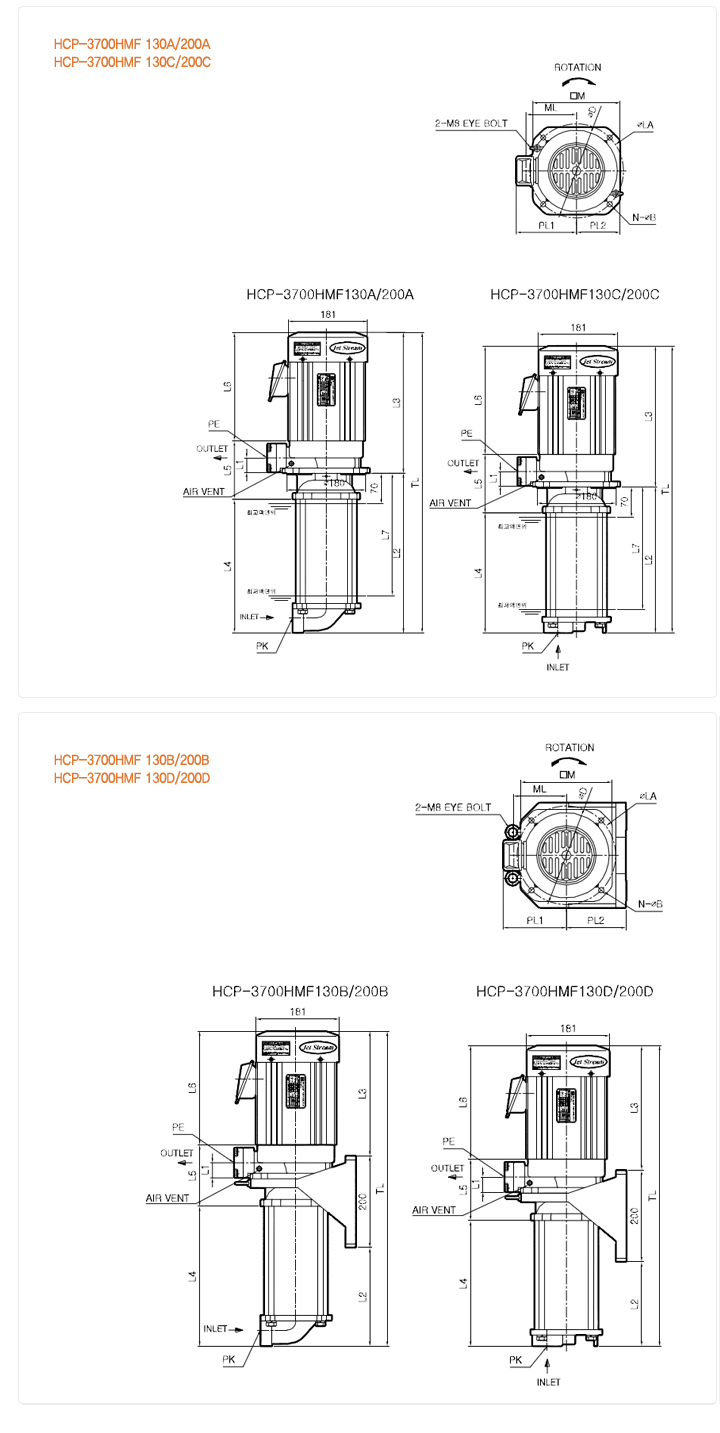

ØD L1 L2 L3 L4 L5 L6 L7 PE
(PT)		 TL LA N-ØB PL1 PL2 M ML PK
(PF)
3700HMF130A 187 33 292.1 322 232.1 134 248 200 3/4 614.1 215 4-12 138 100 200 115 1½
3700HMF130B 187 33 142.1 272 232.1 134 248 - 3/4 614.1 215 4-12 138 130 200 115 1½
3700HMF130C 187 33 263.7 322 203.7 134 248 200 3/4 585.7 215 4-12 138 100 200 115 1¼
3700HMF130D 187 33 113.7 272 203.7 134 248 - 3/4 585.7 215 4-12 138 130 200 115 1¼
3700HMF200A 187 33 365.2 322 305.2 134 248 280 3/4 687.2 215 4-12 138 100 200 115 1½
3700HMF200B 187 33 215.2 272 305.2 134 248 - 3/4 687.2 215 4-12 138 130 200 115 1½
3700HMF200C 187 33 334.1 322 274.1 134 248 280 3/4 656.1 215 4-12 138 100 200 115 1¼
3700HMF200D 187 33 184.1 272 274.1 134 248 - 3/4 656.1 215 4-12 138 130 200 115 1¼


ØD L1 L2 L3 L4 L5 L6 PE
(PT)		 TL LA N-ØB PL1 PL2 M ML PK
(PF)
4000HMF280S-C 187 33 435.3 342 375 134 268 1¼ 777.3 215 4-12 138 100 200 115 3/4
4000HMF280S-D 187 33 285.3 292 375 134 268 1¼ 777.3 215 4-12 138 130 200 115 3/4
