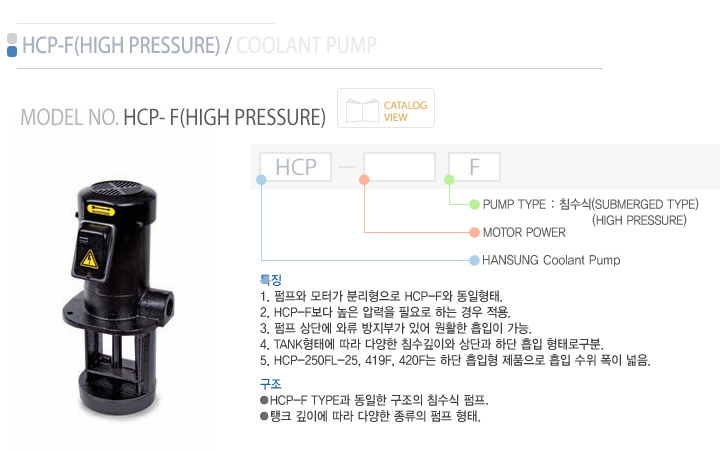

  HCP-F TYPE(고압형)


MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-180F-18, 25 180 50 200
380		 0.93
0.53		 3 2 9 10 PF 1/2 11/12
60 200/220
380		 1.0
0.57		 13
HCP-250F-18, 25
HCP-250FL-25 		250 50 200
380		 1.4
0.8		 3 2 10 10 PF 3/4 12/13/14
60 200/220
380		 1.5
0.86		 14
HCP-418F, 428F
419F, 420F 		400 50 200
380		 2.4
1.4		 3 2 12 40 1 15.6/17.5
60 200/220
380		 2.5
1.5		 16
HCP-618F, 628F,
620F		 600 50 200
380		 2.79
1.61		 3 2 12 80 1 19.5
60 200/220
380		 3.0
1.73		 16


ØD L1 L2 L3 L4 L5 L6 L7 L8 PE
(PT) 		TL R1 R2 LA N-ØB PL1 PL2 M ML
HCP-180F18 121 10 20 180 173 22 116 93 67.6 PF 1/2 353 135 135 160 4-10 108.5 72.5 145 80
HCP-180F25 121 10 25 250 180 15 190 93 67.6 PF 1/2 430 135 135 160 4-10 108.5 75 150 85
HCP-250F18 121 10 20 180 173 22 116 93 67.6 PF 3/4 353 135 135 160 4-10 108.5 72.5 145 80
HCP-250F25 121 10 25 250 180 15 190 93 67.6 PF 3/4 430 135 135 160 4-10 108.5 75 150 85
HCP-250FL-25 121 10 25 245 180 15 215 93 67.6 PF 3/4 425 135 135 160 4-10 108.4 72.5 145 85
HCP-418F/618F 137 10 27 180 238 20 122 143 67.6 1 418 152 150 180 4-10.5 110 90 180 100
HCP-419F 137 10 27 210 244 20 185 139 67.6 1 454 152 150 180 4-10.5 110 90 180 100
HCP-420F 137 10 27 200 238 20 122 143 67.6 1 438 152 150 180 4-10.5 110 90 180 100
HCP-428F//628F 137 10 27 280 238 20 220 143 67.6 1 514 152 150 180 4-10.5 110 90 180 100
