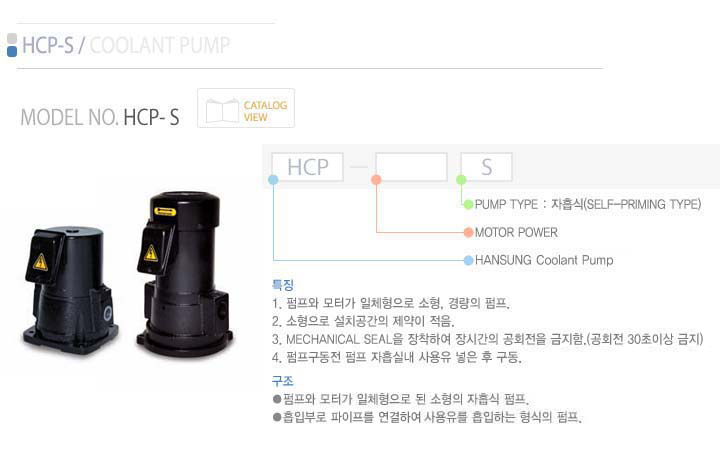

  HCP-S TYPE


MOTOR PUMP
Output
(W)		 Frequency
(Hz)		 Voltage
(V)		 Current
(A)		 Phase Poles Total Head
(m)		 Dis. Vol
( l /min)		 Pipe Size
(PT)		 Weight
(kg)
HCP-60S 60 50 200
380		 0.42
0.24		 3 2 2 20 3/8 6.9
60 200/220
380		 0.45
0.26		 25
HCP-100S 100 50 200
380		 0.51
0.3		 3 2 2 30 3/8 7.1
60 200/220
380		 0.55
0.32		 36
HCP-120S 120 50 200
380		 0.56
0.33		 3 2 2 35 3/8 7.1
60 200/220
380		 0.6
0.35		 42
HCP-180S 180 50 200
380		 0.93
0.53		 3 2 3 58 1/2 11.1
60 200/220
380		 1.0
0.57		 70
HCP-250S 250 50 200
380		 1.4
0.8		 3 2 4 95 3/4 11.3
60 200/220
380		 1.5
0.86		 130
HCP-400S 400 50 200
380		 2.4
1.4		 3 2 5 140 1 15
60 200/220
380		 2.5
1.5		 200

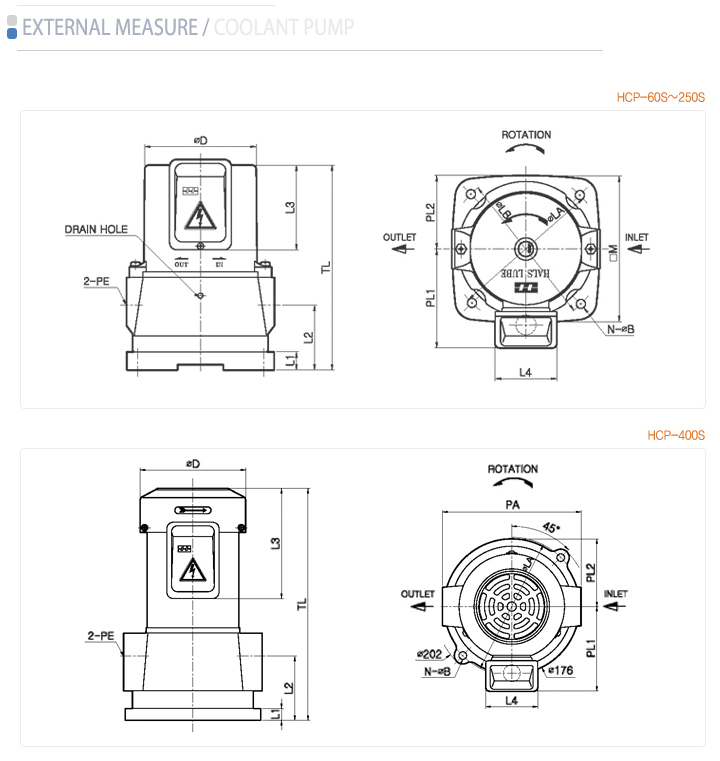

ØD L1 L2 L3 L4 PE(PT) TL LA LB N-ØB PA M PL1 PL2
HCP-60S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(130) 4-7 130 130 93.5 65
HCP-100S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(150) 4-7 130 130 93.5 65
HCP-120S 94 15 55.5 92.5 67.6 2-⅜ 200.5 132(132) 150(150) 4-7 130 130 93.5 65
HCP-180S 121 15 66 93 67.6 2-½ 218.5 167(160) 170(164) 4-10 162 160 108.5 80
HCP-250S 121 20 71 93 67.6 2-¾ 224.5 167(160) 170(170) 4-10 162 160 108.5 80
HCP-400S 137 14.5 83 143 67.6 2-1 301 180(180) - 2-10 180 - 110 88
